电池储能系统—室内,30kVA / 50kVA
电池储能系统—室内,30kVA / 50kVA
电池储能系统—室内,30kVA / 50kVA
电池储能系统—室内,30kVA / 50kVA

This system uses lithium iron phosphate battery, which can be off-grid or connected to the grid, providing green, safe and reliable power supply solutions for small villages and islands without power supply, and can also be used for large farms or farms. At the same time, the parallel connection of multiple products can also meet the needs of industrial and commercial applications, such as peak load shaving, distributed new energy generation and other scenarios.

Product Overview

This system uses lithium iron phosphate battery, which can be off-grid or connected to the grid, providing green, safe and reliable power supply solutions for small villages and islands without power supply, and can also be used for large farms or farms. At the same time, the parallel connection of multiple products can also meet the needs of industrial and commercial applications, such as peak load shaving, distributed new energy generation and other scenarios.

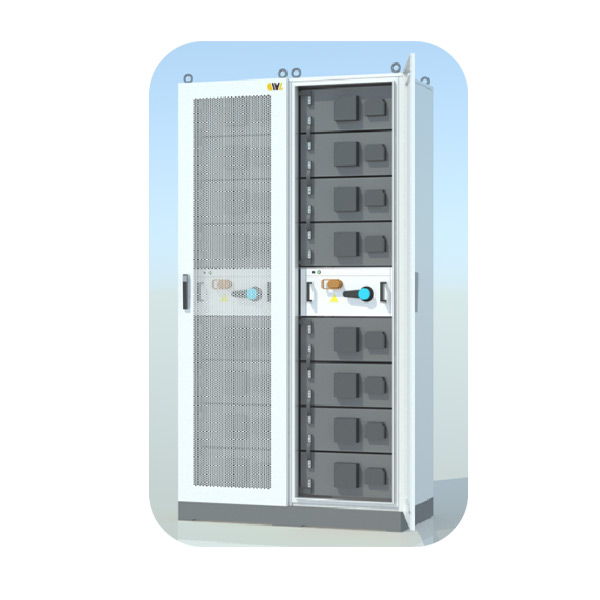

Battery Energy Storage System

Product Advantage

· Using EV level battery, more safe.

· Modular design, easy to maintain.

· Integrated design, easy installation.

· Suitable for indoor installation.


Product Application

Battery Energy Storage System


Product Parameters



30kVA50kVA
1

Useable Energy

>60kWh

>100kWh

No less than. Capacity customizable. New battery or Second life battery.
2AC Voltage360 – 440 V
3

Frequency

50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
4

Reactive Power

-100% – 100%

On-grid

5

THD

< 3 %


6

Operating temperatur

-10℃~+40℃[1]
7humidity

5%~95%


8Altitude

<3000m[2]



9

Enclosure Protection Rating

IP20



10Noise

≤75dBA



11CommunicationModbus TCP/IP

photovoltaic input, Optional.

Max. Power

30kW

60kW


MPPT Voltage

500-900V

No. of PV inputs

1
2

[1] > 40 ℃ derating .

[2] > 2000 m derating.
